An alloy sputtering target is more than a combination of metallic elements. Its composition, microstructure, density, and elemental distribution can all matter when developing a thin film with specific requirements. As the number of alloying elements increases from two to six, material design can offer more variables to work with, but it can also introduce additional challenges in composition control and characterization.
For researchers and coating engineers, choosing the right alloy sputtering targets starts with understanding what each element contributes, how the composition is specified, and whether the target is suitable for the intended deposition process.
FUNCMATER supplies a range of metal alloy sputtering targets, including CuZr, NiNbZr, PbZrTi, ZrVTi, FeCoTaZr, and other alloy systems. These materials provide useful examples of how alloy compositions vary across different research and thin-film applications.
Alloy sputtering targets are materials containing two or more elements that are used as the source material in physical vapor deposition (PVD). During sputtering, energetic ions bombard the target surface, releasing atoms and other species that travel toward a substrate and contribute to film growth.
The number of elements is one way to classify an alloy:
Binary alloys: Two principal elements.
Ternary alloys: Three principal elements.
Quaternary alloys: Four principal elements.
Five-element alloys: Five principal elements.
Six-element alloys: Six principal elements.
This classification describes the number of constituent elements, not the quality or performance of the material. A binary alloy can be the best choice for a particular application, while a more complex alloy may be useful when several material characteristics need to be adjusted simultaneously.
It is also important to distinguish the target composition from the deposited film composition. The composition of a target does not always transfer directly to a film in identical proportions. Differences in sputtering behavior, process conditions, and deposition geometry can affect the resulting film.
Binary alloys are often a useful starting point when a material design requires a controlled combination of two elements. With fewer composition variables, it can be easier to investigate the relationship between composition, microstructure, and measured properties.
However, a two-element system is not necessarily simple. Some alloys form multiple phases, while others can exhibit composition-dependent changes in structure or processing behavior. The outcome depends on the specific elements, their proportions, and the manufacturing route.
For example, FUNCMATER lists Copper Zirconium Alloy (CuZr, 60:40 at.%), as well as ZrSi, NiAl, NbTi, AlNb, and WTa alloy targets. These are examples of different binary compositions available for evaluation.
When specifying a binary target, confirm whether the composition is expressed in atomic percent (at.%) or weight percent (wt.%). These units are not interchangeable. Atomic percent describes the relative number of atoms, whereas weight percent describes the relative mass of each element.
For research applications, recording the exact composition is essential. A target labeled with the same two elements may still differ significantly from another target if the element ratio, impurity limits, or manufacturing specifications are different.
Adding a third element creates another variable in the composition design. This can be useful when a binary system does not provide the required combination of properties, but it also increases the number of possible compositions that may need to be evaluated.

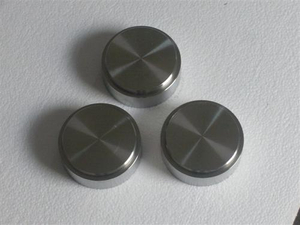

Consider NiNbZr, PbZrTi, and ZrVTi, which are listed in FUNCMATER's alloy sputtering target range. Each system contains three elements, but the design rationale and behavior must be evaluated individually rather than inferred from the number of elements alone.
FUNCMATER lists Nickel Niobium Zirconium Alloy (NiNbZr) with a nominal composition of 60/30/10 at.%. Its product listing illustrates why an exact composition specification is more informative than a formula alone.
For ternary alloy targets, engineers should consider several questions:
Is the required composition clearly specified in at.% or wt.%?
Does the target have a documented composition suitable for the intended experiment?
Could phase separation or elemental segregation affect the required material characteristics?
How will the deposited film composition be measured and verified?
The third element may change phase stability, microstructure, or the behavior of the deposited film. These effects are material-specific. A useful evaluation should connect the proposed composition to experimental evidence rather than assume that adding an element automatically improves performance.
Four-element, five-element, and six-element alloys expand the number of composition variables available to materials researchers. This broader design space can be valuable when developing materials with several interacting requirements. It also makes systematic composition control more important.
FUNCMATER lists Iron Cobalt Tantalum Zirconium Alloy (FeCoTaZr) and Cobalt Tantalum Zirconium Alloy (CoTaZr). FeCoTaZr is an example of a four-element system, while CoTaZr contains three elements. These products illustrate why it is important to count the actual constituent elements rather than classify materials based on the length of their chemical names.
For five-element and six-element alloys, the composition of each element must be considered together with the other constituents. Small changes in one component may affect phase formation, microstructure, or processing behavior. In complex systems, several compositions may need to be prepared and characterized before a suitable candidate is identified.
Adding more elements does not guarantee better performance. A more complex composition can introduce unwanted phases, make processing more demanding, or complicate interpretation of experimental results.
When developing a multicomponent alloy sputtering target, it is useful to establish the intended composition, identify the properties that need to be controlled, and define how the final material will be evaluated. Researchers should also distinguish between a conventional multicomponent alloy and a high-entropy alloy. High-entropy alloys are associated with particular composition concepts and should not be defined solely by the presence of five or six elements.
Nominal composition is only one part of target quality. Two targets with the same specified overall composition may have different internal microstructures or local elemental distributions, depending on their materials and manufacturing histories.
Possible issues include elemental segregation, local compositional variation, porosity, and differences in phase distribution. Their significance depends on the alloy system and the requirements of the deposition process.
FUNCMATER describes its target manufacturing approach as including control of forging, rolling, and annealing parameters, with the aim of achieving high density, low gas content, and a uniform internal structure. The appropriate manufacturing route, however, depends on the specific alloy and target requirements.
Several characterization methods can help assess alloy materials:
Chemical composition analysis: Techniques such as X-ray fluorescence (XRF), inductively coupled plasma methods, or other suitable analytical approaches may be used to evaluate elemental composition. The appropriate method depends on the elements, required accuracy, and sample preparation.
Microstructural examination: Optical microscopy or scanning electron microscopy (SEM) can help reveal phases, pores, and structural differences. Energy-dispersive X-ray spectroscopy (EDS) can provide localized elemental information, although its accuracy and spatial resolution depend on the measurement conditions.
Physical and dimensional checks: Density, dimensions, flatness, bonding requirements, and surface condition may be important depending on the target design and sputtering system.
No single test proves every aspect of target quality. A bulk composition result, for example, does not necessarily establish that every region has identical elemental distribution. When uniformity is important, the sampling plan and the properties actually reported in the quality documentation should be reviewed.
Selecting a target should begin with the intended experiment or production requirement, rather than with the number of alloying elements.
1. Define the composition. Specify the elements and their required ratios. State whether the composition is given in at.% or wt.% and clarify any acceptable tolerances.
2. Identify the required material characteristics. Explain which properties or film characteristics the alloy is intended to help achieve. Avoid assuming that the target alone determines the final film performance.
3. Confirm purity and quality documentation. Ask which impurities are controlled and what certificates, test reports, or analytical results are available for the requested material.
4. Check target geometry and equipment compatibility. Confirm the required diameter, thickness, shape, bonding configuration, and other dimensions relevant to the sputtering system.
5. Consider characterization and reproducibility. If the work involves repeated experiments or multiple batches, establish which specifications need to remain consistent and how those specifications will be verified.
6. Plan film validation. If the deposited film must meet a specific composition or functional requirement, identify the method that will be used to measure the film itself. Target composition and film composition should be treated as related but distinct measurements.
These steps are especially important for multicomponent targets, where composition, microstructure, and process settings may interact.
FUNCMATER offers a range of alloy sputtering targets for thin-film coating and materials research. The listed products include binary systems such as CuZr and NiAl, ternary systems such as NiNbZr and ZrVTi, and the four-element FeCoTaZr alloy.
Explore the FUNCMATER Metal Alloy Sputtering Targets range to review listed materials and identify a suitable starting point for your application.
When requesting a quotation, provide the desired alloy composition, composition units, purity requirements, target dimensions, and any relevant bonding or equipment requirements. For five-element and six-element systems, confirm the exact composition, manufacturing feasibility, and current availability with the supplier rather than assuming that every possible combination is a standard product.
A binary alloy contains two principal elements, while a ternary alloy contains three. The additional element creates another composition variable, but it does not automatically make the material better or more suitable for a particular application.
No. The appropriate number of elements depends on the material design objective. More complex alloys may offer additional design options, but they can also increase the difficulty of composition control, manufacturing, and characterization.
Not necessarily. Sputtering behavior, process settings, and deposition geometry can affect the composition of the deposited film. When film composition is critical, it should be measured and validated directly.
Include the required elements and ratios, at.% or wt.%, purity, dimensions, target geometry, bonding requirements, and available quality documentation. Also describe any specific experimental requirements that may affect material selection.
Alloy sputtering targets range from two-element systems to complex multicomponent compositions. As the number of elements increases, the design space expands, but so does the need for careful composition specification, microstructural evaluation, and process validation.
For engineers and researchers, the most useful starting point is not to choose the alloy with the greatest number of elements. It is to define the material requirements, verify the target specifications, and establish how the deposited film will be evaluated.
FUNCMATER's alloy sputtering target range provides a starting point for reviewing available alloy systems and discussing material requirements for thin-film deposition.
Sutton Fields, S., White, C. D., Knipling, K. E., & Bennett, S. P. (2026). “Facile optimization of combinatorial sputtering processes with arbitrary numbers of components for targeted compositions.” Review of Scientific Instruments.
